Automatic 5 liters lubricant oil filling machine

Product Application

This machine is a kind of high and new technology filling equipment controlled by microcomputer programmable(PLC system), photoelectric sensor and pneumatic equipment.

Suitable for filling of bottles with various shapes, such as square, round, elliptical, etc.

Suitable for filling of liquid and semi-liquid.

Suitable for food, chemical, pharmaceutical, pesticide, cosmetic, health care products, such as honey, edible oil, chili sauce, eye drops, oral liquid, syrup, liquid glue, wine, soy sauce, jam, shampoo, detergent, shampoo, detergent, oil, dairy products etc.

Filling heads
6(filling heads number is based on production speed)
Filling range
100-1000ml(can be customized according to customers requirements)
Filling speed
2000-3000 BPH
Filling accuracy
±1%
Power, voltage
50/60Hz, AC220/380V
Air consumption
0.4-0.8Mpa
Dimension
2000*1100*2100mm L*W*H
Weight
500KG

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Servo motor drive piston filling machine,filling accuracy is good and stable.

4) Easy to clean, all materials contact part with quick removal structure, can also configure the customer's CIP cleaning system, cleaning time within 15 to 30 minutes.

5) Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.

6)It can be used alone or connected to production lines, and can be combined with capping machine, labeling machine, inkjet printer, etc., to save labor and increase output.

Accurate filling heads

Note: the filling range and speed can be designed according to user needs to design different filling head number.

Servo motor drive piston filling

Filling accuracy is good,stable,and durable.

Easy clean,quick installation and disassembly settings.

Touch screen

Intelligent man-machine interface, simple operation, easy to set up, data can be memorized and stored

Dust proof cover

Comply with the European, American and other safety standards set up to meet the requirements of the GMP.

Automatic stop when door is open

Automatic stop of door to prevent dangerous situation from happening.

Japanese imported high-precision optical eye, fast sensing, accurate, durable.

KEYENCE sensor.

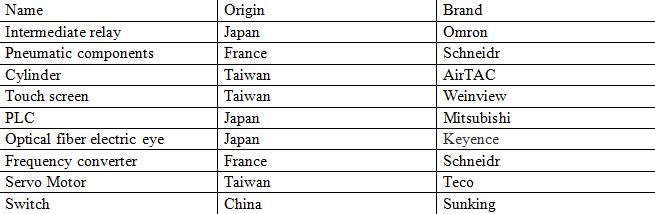

Machine components

Mitsubishi PLC, Schneider Inverter, Sick photoelectric Sensor Germany.

Bottle unscrambler

Simple structure and strong practicability.

Automatic bottle sorting and feeding,save labor cost.

UV sterilization

Suitable for food, medicine and other products with high requirements.

The principle is to use ultraviolet rays to kill bad bacteria and make the containers cleaner.

Finished product collecting table

Suitable for the collection and packaging of finished products, reducing labor intensity

Full ss304 machine body

The machine mainly uses SS304 stainless steel, contact part SS316 stainless steel, the hygiene standard is high, the durability is strong.
Filling machine manufacturer

We are located in Shanghai China.

About 15-20 minutes from our factory to Guangzhou baiyun international airport.

Automatic capping machine

Mainly use for cap sealing after filling,can be use separately,or inline use.

Different cap type,size,machine will be little different.

Can be customized according to customers requirements.

Automatic labeling machine

Suitable for round bottles,square bottles,other shaped bottles.

Can be label for one side,two side or multi side.

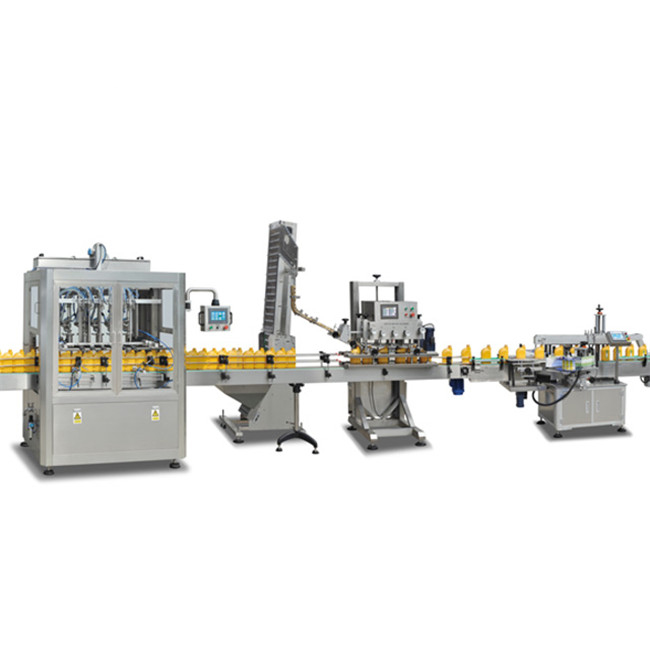

Filling line

Not only filling machine,we also provide capping machine,labeling machine,and other machines as well

Drawing

We can make machine according to customers product and requirements.

The machine drawing and layout can be provided according to the requirements of the customer and the layout of the site..

Application

Suitable for various materials such as plastic bottle , glass bottle and the like.

Can be adjusted according to the shape of the bottle, such as round bottle, square bottle, special-shaped bottle and so on.

Can be filled with food, such as honey, sauce, cooking oil and so on.
Can also be filled with daily chemical products, such as shampoo, body soap, detergent, clothing softener and so on.
Chemical products can also be filled, such as lubricating oil, oil, car cleaning fluids and so on

Packing & Delivery
Packaging
Size
100 (L) * 100 (W) * 900 (D)
Weight
100kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
210(L) * 960 (W) * 1700(D)
Weight
260kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ

Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How do you offer technical support?
A4: 1.Technical support by phone, email or whatsapp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
Q5:How do you work your after sales service?
A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.

Several answers needed before quotation:

1.Filling material?Viscosity?Corrosive?Foamy?Explosion proof?Silk or drop?

2.Filling volume?ML?

3.Filling speed?How many bottles per hour?

4.Filling capping labeling machines together?
