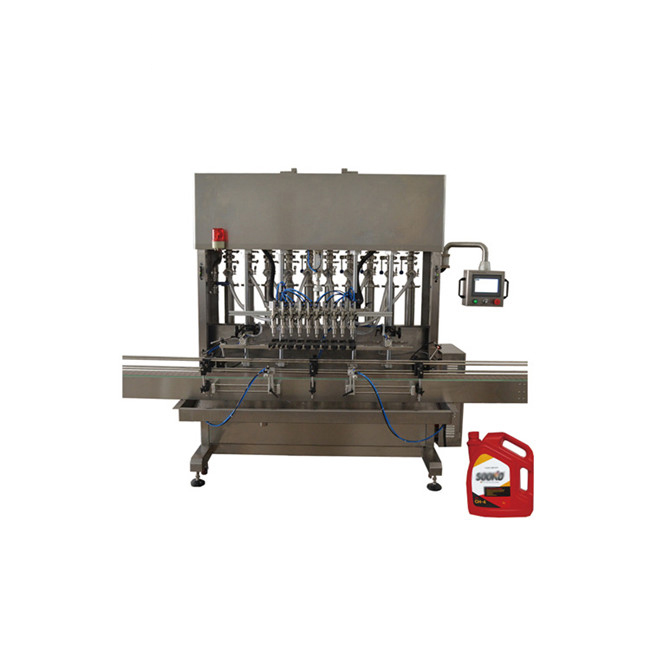

Automatic 1-5L piston bottle jar lube engine oil liquid filling machine

This series automatic edible food oil filling machine for bottle adopts serve ball-screw system to drive the piston cylinder.It's widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry, applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Oil, Sauce, Ketchup, Honey, Shampoo, Lotion Lubricant oil, etc. And it is suitable for barrels, jars and bottles of different sizes, shapes and volumes.

Filling part

Micro-computer Filling Machine is suitable . It uses vertical structure with constant liquid level and time which realize the precise filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjust easier.

Features:

1. This machine is equipped with weight feedback system. When changing the bottle size or filling volume, only press one key in the touch screen can be adjusted. Electric scale can transfer the data into the system and fine-tune have to be adjusted in the touch screen by man.

2. The cylinder drives the diving of the filling nozzle and matched with the variable filling speed which can reduce foaming when filling which can avoid polluting the bottles.

3. The latest designed bottle-chuck structure is adopted, convenient adjustment, and reliable structure.

4. Optimized Bottle-in and bottle-out control modes: Normal and fast. The fast mode has no delay in bottle-in and out which improves the capacity.

5. A disassembling filter is installed in the material feeding pipe to avoid the impurities influence the filling precision and lifetime of the valves.

6. The material level sensor is used to check the level position under normal running of the machine,plus with high and low level check and alarm device. The level inspection device is made of PTFE, with perfect anti-corrosion feature.

7. A liquid holder which is controlled by an individual cylinder is installed under the filling nozzles. It can avoid the pollution to the bottle after the filling nozzles are OFF.

8. The whole machine use the frame of Stainless Steel 304 that with perfect anti-corrosion effect. The stainless steel cover and the toughened glass door prevent the dirty air during filling from polluting the environment. Meanwhile, dimensionΦ100mm exhaust outlet reserved on the top of the filling lancers which connected to the induced draught system for exhausting gas.

9. Filling Machine , equipped with the back coordination sensor, will automatically stop if the jam and topple of bottles .Or it will feed bottle again when the it operated normally.

10. Compared to the normal Angle seat valve that other suppliers using. We used KOREA valve, which ensures the precision, durability and reliability of the filling volumes.

11. Japan Air pressure checking device used to checking the air pressure, when the air pressure is lower to the set number, the machine will alarm and stop automatically. This instrument is features for its convenient adjustment and durability.

Capping part

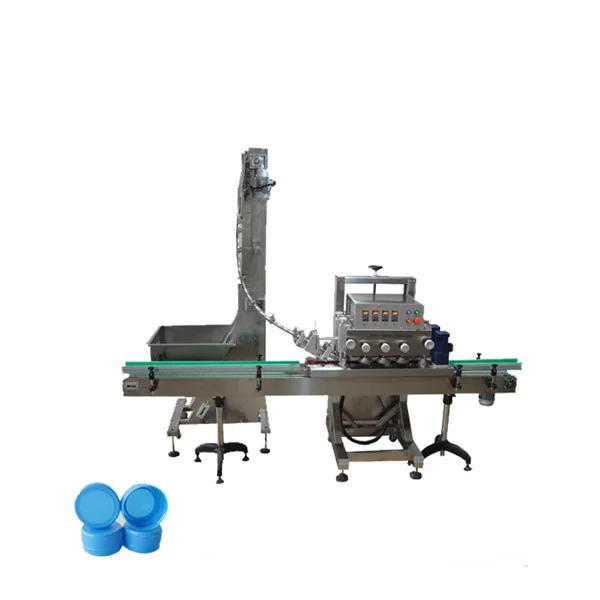

Automatic Capping Machine is making up with cap sorter, cap falling rail, bottle-tightening structure and capping wheels. By the tightening of the belts, the bottles finish the movement of cap scratch, push and capping. It applies to the capping of round and flat bottles. This capping machine is with easy structure and adjustment. When changing the bottle type, you do not need to change the spare part, only adjustment is enough. Because the customer of the 4 liter bottle caps to 70 mm in diameter, the machine’s lid sorter and slot are need to customize.

Automatic Spindle Capping Machine 2

Features:

1. The whole machine uses frequency converter which can make sure the stability of the machine.

2. A cap sensor is installed in the cap hopper. When there is not enough cap, the elevator will start working to make sure providing caps.

3. Use a handle to adjust the height and tight of the machine.

4. A mirror is installed to check the state of caps.

5. The tightening belt can last for a very long time.

6. The capping wheels with new material can last for a very long time.

Double face adhesive labeling machine

Intellectual Labeling Machine is controlled by the PLC, HMI and servo drive labeling. The machine is easy to operate and has helping function and fault indication function. It is suitable for the self-adhesive labeling of round bottles.

Automatic Round Bottle Sticker Labeling Machine 5

Features:

1. The servo motor labeling structure and PLC control make sure the high speed and precision of labeling.

2. The labeling part uses the handle adjusting, it can also adjust for the bottles with conicity.

3. The twin bottle separating structure which makes the space between bottles more accurate.

4. The individual label rolling structure which makes the labeling more precise and accurate.

5. A encoder is installed on the conveying system which makes the speed of labeling and the conveyor in the same pace to keep the stability of labeling.

6. It uses unique emery drive roll structure with good friction which guarantee the stability of labeling.

7. The machine uses the structure of wheels combines with feet which makes the moving of the machines more easier.

8. A soft polyurethane is used in the center of the labels, it is applicable to different label rolls.

9. An instruction note is on the machine which is convienient for the operating personnel to change the labels.

, ,
