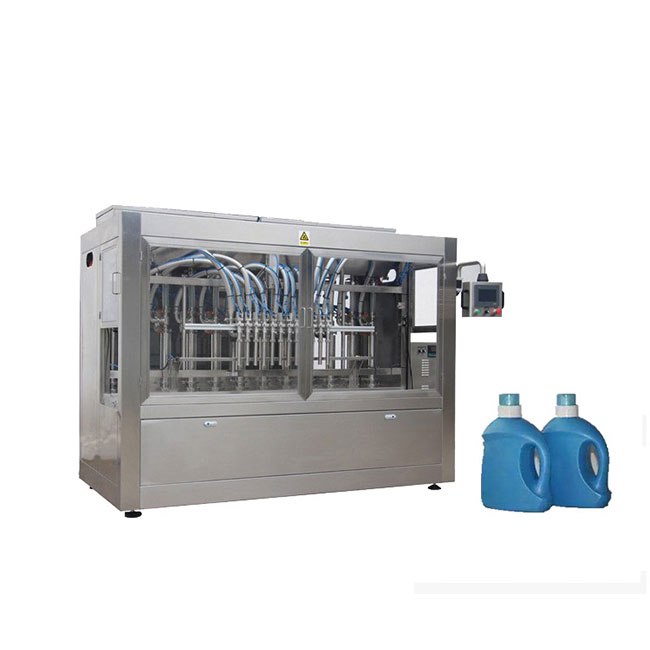

Liner type engine oil production line lube oil filling machine

Product Introduction:

This machine adopt PLC touch screen Siemens control,It's adopt piston filling form. The filling nozzle material tank and touches liquid part material is USU304 Teflon and POM.And it have proteation device that machine will stop and alarm when lack of materials .

Application :

Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.

This production line is customized,and we will make a suitable plan for you according to your detailed request.

Main parameter
Filling head
8 heads
Votage
220V
Speed
≤3000BPH (base on 1L)
Power
2kw
Filling volume
1-5L
metering error
≤±3‰
Container minimum diameter
Ф50mm
Air Comsumption
0.9m3/min
Working Pressure
0.6Mpa-0.7Mpa
Dimension
2440mm × 1480mm× 2610mm

Main Features

1) PLC programmable control, with touch screen man-machine interface system .
2) Automatic feeding, automatic filling, automatic out bottle after filling .
3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4) Stable and reliable operation, high production efficiency, strong adaptability .
5) Filling volume adjustable , each filling nozzle could be single use , you can stop any filling nozzle at any time .

Machine Parts

Name:  Material tank

Brand: Powerrig

Original: China

1.The material box and ball valve are made of 316 high quality stainless steel, and has the ability of corrosion resistance.

2.The design of the hopper is designed with the slope, which can be convenient for the customers to change the variety, which is convenient for cleaning and meets the requirements of GMP.

Machine Parts

1.Name: Piston cylinder
Brand: Power
Original: China
According to customer production capacity requirements could make 1-5 liter cylinder

2.Name: Touch screen
Brand: Canada Xinjie
Original: China
The whole filling processing adopt touch screen control , and each filling nozzle could be single use by touch screen control

3.Name: driving system
Brand: Power
Original: China
The machine adopt servo motor double screw-rod drive, Control the movement of the piston rod to ensure the stability of the filling.
