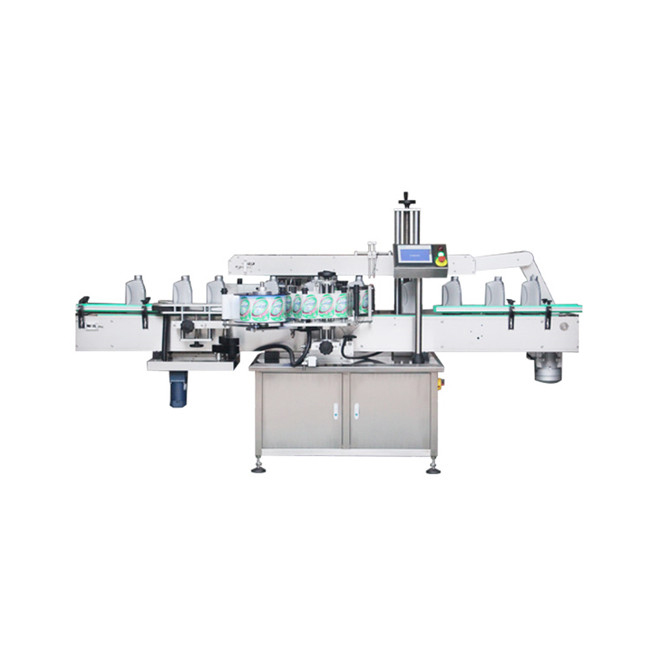

vertical Square bottle Automatic Hot melt glue /Roll Fed labeling machine

What is the Details of Our Labeling Machine?


1. The Scope of Application:

Applicable for round bottles labeling, also for small bottles which can stand stably when labeling.


2. Device Characteristics:

 (1)   Adopt mature technology PLC control system, operation is stable and high-speed

 (2)   Using touch-screen man-machine control operating system, simple, and efficient;

 (3)   Screw adjustment to suppress bottle move accurately;

(4)   Synchronization chain mechanism ensure labeling smooth with high precise;

(5)   Advanced technology of pneumatic coding system, print the batch number and expiry clearly.

(6)   Transmission-type roll label device, make sure the label attached more firmly;


3. Device Advantages:

(1)   Imported electric elements, stable performance and low failure rate;

(2)   Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;

(3)   Can be operated alone or contract with the production line;

(4)   No bottle not labeling, automatic alarm when achieve leakage label.

(5)   The whole machine use the material of S304 stainless steel and anodized  senior aluminum alloy.


What is the Specification of Our Labeling Machine?


Driving ModeServo motor
Production (bottle/min)40-200  (bottle/min)
Labeling Speed (m/min)≤40
Labeling Accuracy±1.0 mm (subject to the roughness of the plane)
Operating directionLeft or Right
The application of bottleOuter diameter 40-100mm; Height 35-180mm
The application of labelHeight 20-140mm; Length 23-280mm
The inner diameter of label plate76mm
The outer diameter of label plate350mm (max)
The power of motor (w)550W
Size appearance (mm)1800 (L)  700 (W)  1270 (H) mm
Weight(kg)180 kg

Voltage (In China)

AC220V 50/60HZ Single phase

(Can customized as buyer need)

Spare Parts List:
1Fuse Piece3
2Green Round BeltΦ3,Φ5`Φ6,Φ8MeterOne meter for each
3Word grain box1
4Ribbon Root10
5Heating tube Piece1
6Tools with machine Set1













Q1: How to choose the most suitable machine and get the final suitable price?

A1: For labeling machine,you’d better reply us the following questions:

Can you send us picture of your bottle and label?

What’s the dimension of the label?

Do you need printing the date on the label?

What speed do you need for production?


Q2: Do you have videos or manual for us to know the machine better?

A2: Yes, of course. Please email us and ask for it. We will send you soon.


Q3: How about your machine’s quality?

A3: Every machine is applied with CE certificate, SGS certificate, highly meets requirement of GMP; Machine is fully made of SUS 304 for food packaging; SUS316 for pharmaceutical products packaging. Inspect certificate is available.


Q4: How is your machine’s price?

A4: We promise the price we give out is lowest if same application, only to enlarge the market share.


Q5: What’s the delivery time?

A5: Depending on your order: for whole production line it is 40~60 days. bottle or tube filling machine, labeling machine, capping machine, unscrambling machine, emulsifying machine will be 30~40 days. Other simple equipment will be around 7~15 days. The above delivery time is calculated after receiving the down payment as well as sample bottles / tubes and materials.


Q6: Is there MOQ for your machine?

A6: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.:)


Q7: How to install the machine?

A7: Please do not worry. We will send you detailed video and instruction manual for your reference. Customer also can appoint your engineers to our factory to learn. Our engineers also can go abroad to install the machine well, however, customer needs to pay round air tickets, hotel and service expenses.


Q8: What is your warranty for the machine?

A8: The valid time for the warranty of our machine is one year; we will provide the spare parts to the buyer total for free in one year, which do not include those damaged or broken parts caused by human. And the vulnerable and consumptive spare parts are also out of the range of guarantee.Buyer needs to pay for the shipping or air charges.
