Small bottle cooking oil filling and capping labeling machine

oil 5 liter bottle filling machine, small bottle cooking oil filling and capping labeling machine

Filling samples

This edible oil filling machine is sutable for oil filling. It is also widely used for viscous liquids such as jam, syrup, tomato sauce, honey etc.

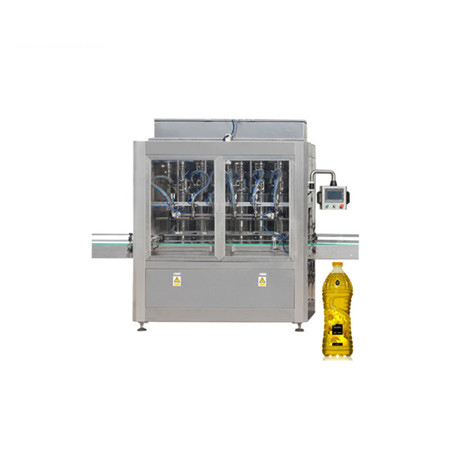

Small bottle cooking oil filling and capping labeling machine

The piston filling machine can be connected with filling line,and mainly suitable for viscosity liquids. It adopts integrated design, using high quality electrical components such as PLC, a photoelectric switch, touch screen and high quality stainless steel, plastic parts. This machine is good quality. System operation, convenient adjustment, friendly man-machine interface, the use of advanced automatic control technology, in order to achieve a high precision liquid filling.

There are advantages as below:

a. Large filling scope from 100-5000ml. if you need volume larger than 5L,we also could make it.

b. with high filling precision of ±0.5 ml

c. The filling volume is regulated by the actual measurement,and it is digital PLCdisplay control.

d. Simple to operate,easy to maintain with low cost.

e. The fillers has the no bottle no filling system. The filler has drop control system which avoids any oil leakage out.

f. Stable lifting of ball screw post.

g. Bottle mouth positioning device ensures no deviation of the filling valve.

h. Liquid in or out automatically, without manual intervention.

Details

Product Parameter

Filling Range: 100-5000ml
Output: 1200 bottles per hour
Measurement Precision: 99.8%
Applicable Bottle Dia.: 40-100mm
Applicable Bottle Height.: 70-300mm
Air Pressure: 0.6-0.8Mpa
Power: 2KW
Electricity: AC380V,three phase
Dimension: 1800x1300x2150mm

Our Services

During the production: we will cooperate with buyer and update the manufacturing process and status to buyers, and we will invite buyer come to test the machine when the goods finishes in our factory, if the buyer think it is ok, we will arrange shipping; or we can take the testing video and send to buyer, the purpose is that the buyer could inspect the machine.

After sales: We will send technicians overseas, commissioning, and operator training; Our warranty period is 12 months, in this period, we provide free parts for buyer as well as the necessary technical support. Out of warranty period, we offer free technical support, and the cost price of spare parts.

The sample service:

1. We can send you the video of the running machine.

2. You are welcome to come to visit our company,and see the machine running in our factory, we can pick you up from the station near our city.

3. If we get the permission of the customer who has brought the machines from us, we can tell you our customers' contact imformation, you can go to vist their factory.

Customized service

1. We can design the machines according your requirements(materil, power, filling type, the kinds of the bottles, and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.

2. We can offer free technical support and consultation such as design your factory, draw the factory layout and so on.
