Automatic dishwashing liquid deodorizer spray filling machine

Automatic dishwashing liquid deodorizer spray filling machine

This machine is mainly used for perfume, disinfectant, repellent liquid, jelly water, rhinitis spirit, athlete's foot doctor, burn spray, watermelon frost sprays and other products of automatic filling and capping.

Automatic dishwashing liquid deodorizer spray filling machine

1. Workflow: bottle unscrambling --bottle washing (optional)?--filling --adding sprayer --adding cap (optional) --capping -- labeling --ribbon printing/ink jet printing (optional).

2. PLC controlsystem, color touch screen display.

3. This machine has function of no bottle no filling (only peristaltic pump) / no adding pump/ no adding outer cap (if has outer cap).

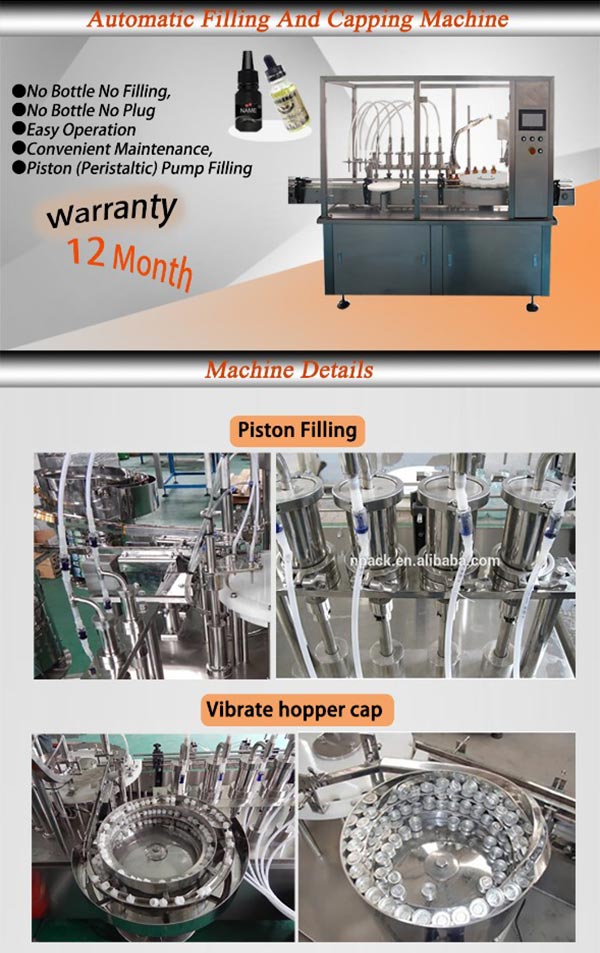

4. Stainless steel piston pump quantitative filling, pneumatic adding cap, lifting screw capping. Has advantages of accurate filling measurement, smooth screw capping, and simple operation.

5. Cappositioning device, makessure the sprayer plastic pipe which too long or curved could go to bottle neck accurately.

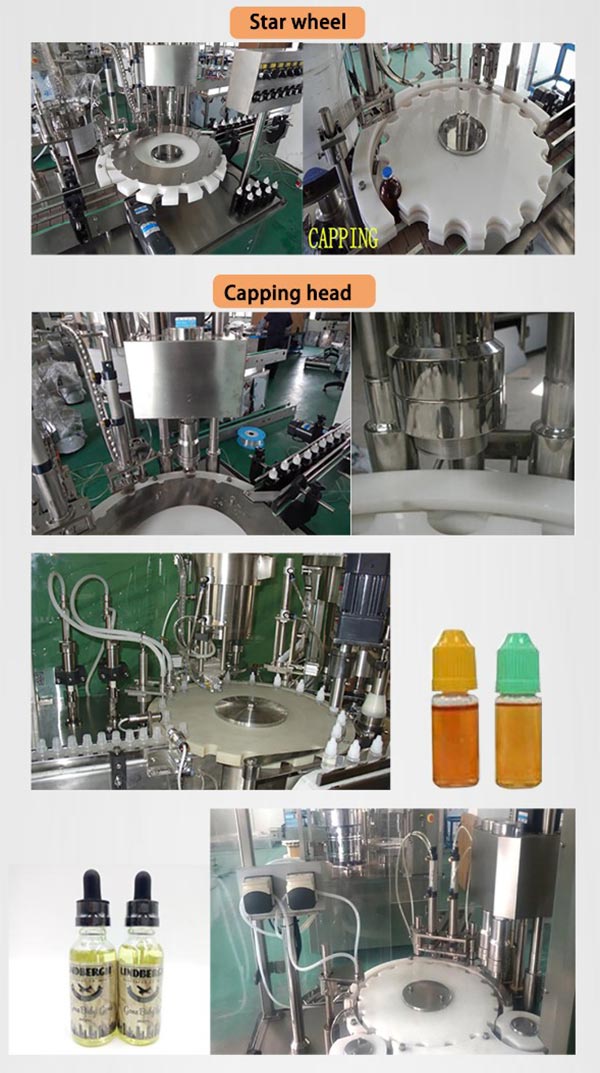

6. Filling nozzlesdive into bottlesto fill and riseslowly to prevent foaming. Catch type flexible screw lid/head, adjustable tightness.

7. Main electrical elements adopt foreign well-known brands.

8. Machine shellis made of 304 stainless steel, machine meets GMP requirements.

Automatic dishwashing liquid deodorizer spray filling machine

Warranty1 YEAR
After-sales Service ProvidedOnline support
CertificationCE Certificate
Weight500kg
Dimension(L*W*H)2100*1600*200
Brand NameNPACK
Place of OriginChina (Mainland)
China (Mainland)Shanghai
Voltage220V/50HZ
Driven TypeElectric
Automatic GradeAutomatic
Packaging MaterialMetal, Paper, Plastic, Wood,Glass
Packaging TypeBarrel, Bottles, Cans, Case, Cartons
ApplicationApparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
ConditionNew
After-sales Service ProvidedEngineers available to service machinery overseas
Product nameperfume filling machine
Capacity10-35bottles/min
Filling volume20-200ML
Filling accurancy≤±1%
Filling head number2
Net weight450kg
Adding plud/dropper head1
Pass rate≥98%

Automatic dishwashing liquid deodorizer spray filling machine

The machine works by one principle;

The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper. The volume of the product that is sucked into the cylinder is the precise volume that will be dispensed into the container. All these procedure is highly controlled by servo motor to assure 100% working stability.

What determined the piston filling machine's capacity?

In general, number of filling nozzles is the key to determine the capacity of your filling machine, which has directly influence on filling capacity by hour in actual production. Beside filling nozzles, the size of mouth of filling head is also a key to affect filling speed. And other details like bottle size, product viscosity, neck mouth, conveyor speed, etc. NPACK'S engineer will make all the details best before shipping to client's site.

Touch screen

Our touch screen is in two languages by default, Chinese and English, but we can also set it if the customer requires other languages

Our machines can be made into a complete production line

From bottle feeder +filling + capping + labeling + bottle collecting

We also have heating and stirring tank, air compressor, and other related products.

Bottle feeder .

This machine is mainly used for round or square shape bottles automatic sorting and arrangement. Put the bottles on the rotating disc manually, then it will set the bottles into the conveyor in order Machine shell and part contacting product are made of stainless steel, meets GMP standard.

Application:

The machine is mainly applied to 50 ml or less electronic cigarette oil, eye drops, nail polish, eye shadow, essential oils and other products of automatic filling, plug and screw cap.

Spray filling production line

This machine is mainly used for automatic filling of perfume, disinfectant, toilet water, gel water and other spray products

Liquid filling production line

This machine is mainly used for automatic filling of perfume, disinfectant, toilet water, gel water and other spray products

Cartoning machine

It's suitable for e-cigarette oil bottle, eye drops bottle, blister forming capsule and tablet, We can customize the machines exactly according to your bottles and your requirements!
