Peristaltic pump liquid filling machine for small vial bottle

Easy cleaning essential oil peristaltic pump liquid filling machine for small vial bottle filling capping labeling machine for small business

This is complete line is including rotary table feeder, perispaltic filling machine, cap vibration bowl feeder, capping machine, planetary three point labeling machine for small vial bottle more accurate.

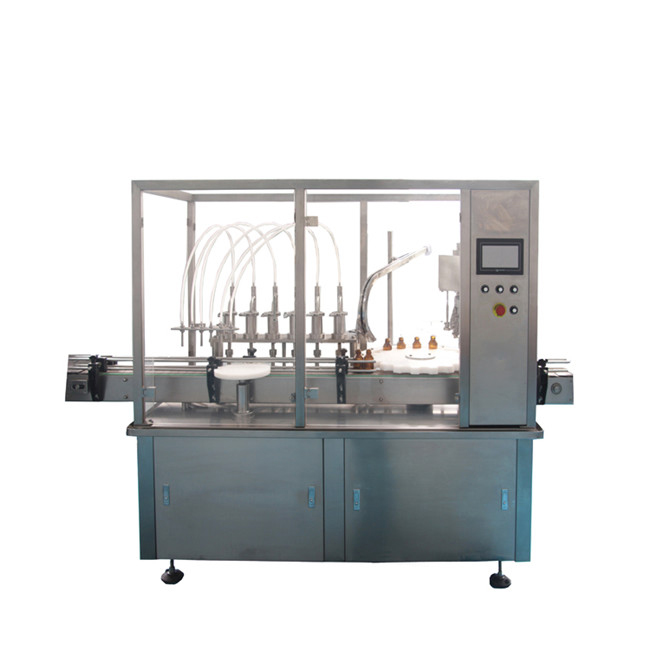

5~30ml essential oil bottle filling machine

Bottle:

10ml/25ml/32ml essential oil glass bottle filling, capping and labeling

Cap:

The cap can be dripper cap with the dripper insert or‘tamperevident’cap with a detachable ring around the bottom of the cap.

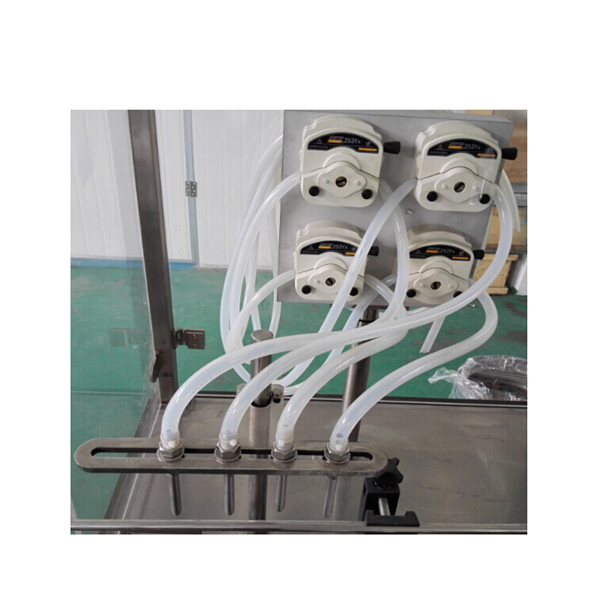

Automatic-Rotary-Peristaltic-Pump-Bottle-Filling-Machine-4

Filling Capping and Labeling Machine:

Capacity: about 60BPM

Working process: Bottle Unscrambling and feeding - automatic 4 heads filling – automatic cap unscrambling- 2heads putting the cap on bottle – automatic 2 caps capping – rotary fixed point labeling – collecting

Main machines

Filling Machine (2 lines, 4 heads filling) +Capping system (with cap vibration bowl +feeding on the cap + capping-2 caps capping

Automatic-Rotary-Peristaltic-Pump-Bottle-Filling-Machine-4

Features:

This machine is applied for 10-20ml round plastic bottle or glass bottle Electronic smoke, essential oil, eye drop liquid filling etc. in plastic or glass bottles. There is high accuracy cam mechanism to provide Graduated dial to locate the cap on, accelerating cam transmission capping head lifting; constant torsion capping, mechanical pump dosing and filling; touch screen control, no bottle no filling, no inside and outside cap, with advantage of stable transmission, accurate location, accurate dosing, convenient operation etc.

This filling system is widely used in food, chemical, beverage industries etc., suitable for small bottle filling and capping, made in SUS304 stainless steel and SUS316 anti-corrosion stainless steel for the part in contact with material, which is complied with GMP standard.

Specification:

Capacity: 40-60 bpm

Filling head: 4 heads

Filling range: 10-20ml

Filling accuracy:±1%~3%

Capping head: two

Capping rate: ≥98%(adjusted according to the cap feature)

Speed control: frequency speed adjustment

Power supply: single phase, 220V 50Hz

Power consumption: 1.8kw

Size: about 2500mm X 1300mm X 1800mm

Table diameter: 1000mm

Height: 860mm

Sides: 100mm high

Bottle diameter: 42mm to 75mm

Rotation Direction: clockwise

To be mounted on the side of existing conveyor. (not on the end of conveyor)

With 240v AC speed controller & 3 metre cable with 3 pin Australian plug top.

Adjustable bottle ‘swipe’ blade.
