Purpose and performance

This machine is mainly applicable to filling/capping operation for 20-500ml plastic or glass

bottles,10 pumps are used for doubleheaded filing/capping.In order to increase corresponding

output, stainless steel pumps canbe added.

This machine structure allows filling production for high-capacity liquid like large

infusion,syrup etc,This machine has simple structure,is convenient in maintenance and easy

for operation.It is advised to choose corresponding electric configuration and dust cover .

Main features and performance:

1.Bottle feeding, filling and plug putting are on dual rails; linear bottle feeding; liquid level

2.filled can be tracked and controlled by stainless steel valve to ensure there is no adherent

liquid and dropping liquid; detect with optical fiber; plug putting by cylinder; stop putting

inner plug with no bottles there; percent of pass of putting plug is high.

3.Good safety barrier propterty; Convenient to operate, adopting selective touch screen to


4.Widely used for the volume production of infusion solutions in bigger bottles and large

capacity vaccine.

Main performance and features:

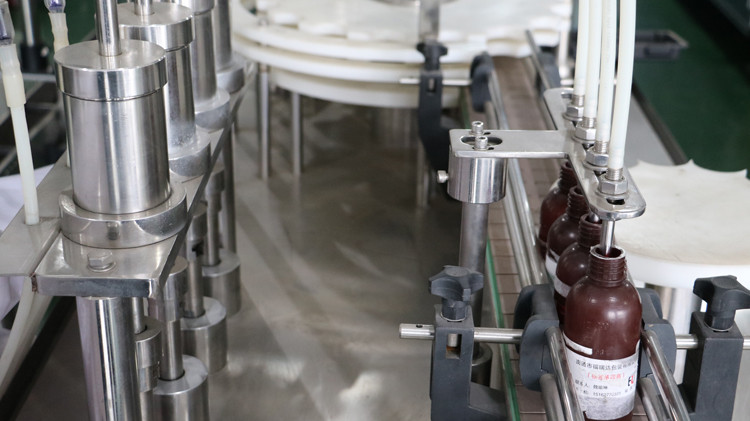

1. Used for filling, cap-locking, mouth sealing work of plastic or glass bottles.

2. Used for filling and mouth sealing work of oral agent, external use agentia, cosmetics, food and beverage and other industries.

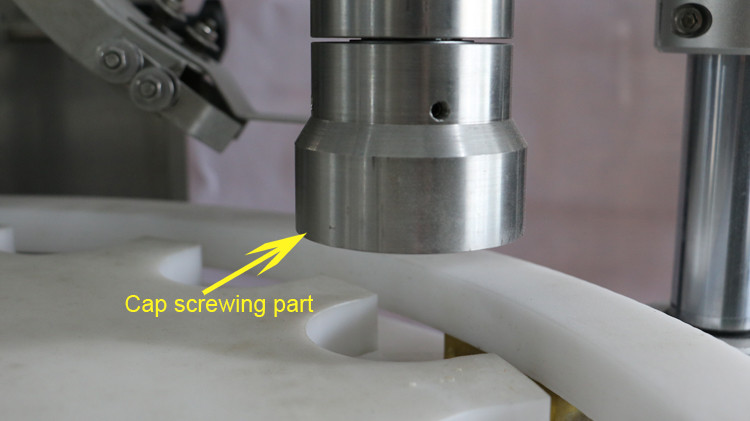

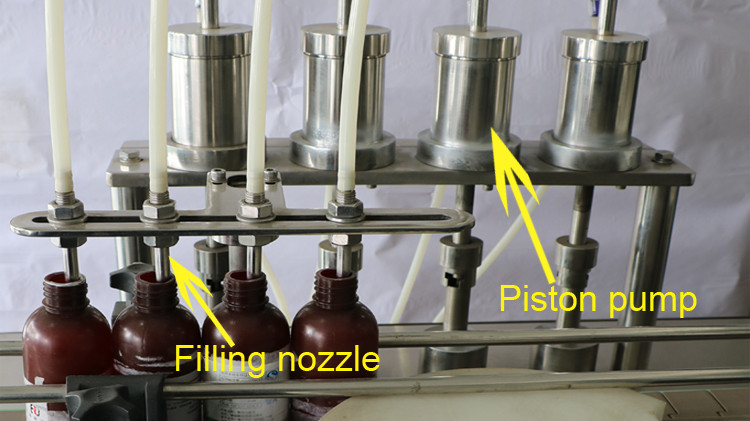

3. It can meet the need of higher output with adopting two-rail bottle feeding, two-rail filling and two-nozzle cap screwing or rolling and pressing. This machine has high filling accuracy and can be disassembly and sterilized conveniently, adopting quick-joint stainless steelpiston pump.With the use of constant torque cap screwing and pneumatic protector, sealed mouth is leakproof.

4. Liquid level and leakproofness of sealed mouth detection systems are selectable, which ensures that machine has good safety barrier propterty.

Technical parameters:

 Applicable specifications20-500ml(Special specifications are customizable)
speed 80-120 bottles/min.
Net weight900kg
Power supply and total power380V   50HZ   2KW
 Boundary dimension3000mm×1350mm×1730mm









Our Services


After-sale service:

We provide you with one year warranty and life long after-sale service, we guarantee the main parts

within 12 months, if the main parts go wrong without human contact within one year, we will freely provide
 with you. And after one year, if you need to change parts, we will provide with you with best price and
main it in your site. Whenever and wherever you have technical problems, you can contact us at any time,
 we will do our best to support you to solve the problems.

Quality guarantee:

We are the manufacturer of the machine, as a manufacturer, we guarantee the machine are made of

the best materials, with first-class workmanship, brand new, unused and in all respects with the quality,
 specification and performance are stipulated in the contract.

Quality warranty period is within 12 months from B/L date. The manufacturer would repair the

contracted machines free of charge during the quality guarantee period . If the breakdown is due
 to the improper use or other reasons, the manufacturer will collect the repair fee.

Installation and debugging:

After the machine arrives at the buyer's factory, if the buyer want us to install and commission the

machine in buyer's factory, we will dispatch one engineer to your site to install and commission the
 machine to you, but the related fees: round trip tickets, local accomodation, food, transportation will
 be borne by the buyer, and the buyer should provide his site site assistance for the installation
and commission.


1. Are you the factory?

Yes. Our company engaged in packing machinery for ten years.

2. Can you do customized packing machine?

Yes,of course. We are specific packing machinery manufacturer with morn than 10 years experiences,we can do packing machinery accourding to the customer's requirements.

3. I there any installation direction after we received the machine?

Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

4. Is there any ensurance to guarantee my order from your company?

We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.

Packaging & Shipping
